Description

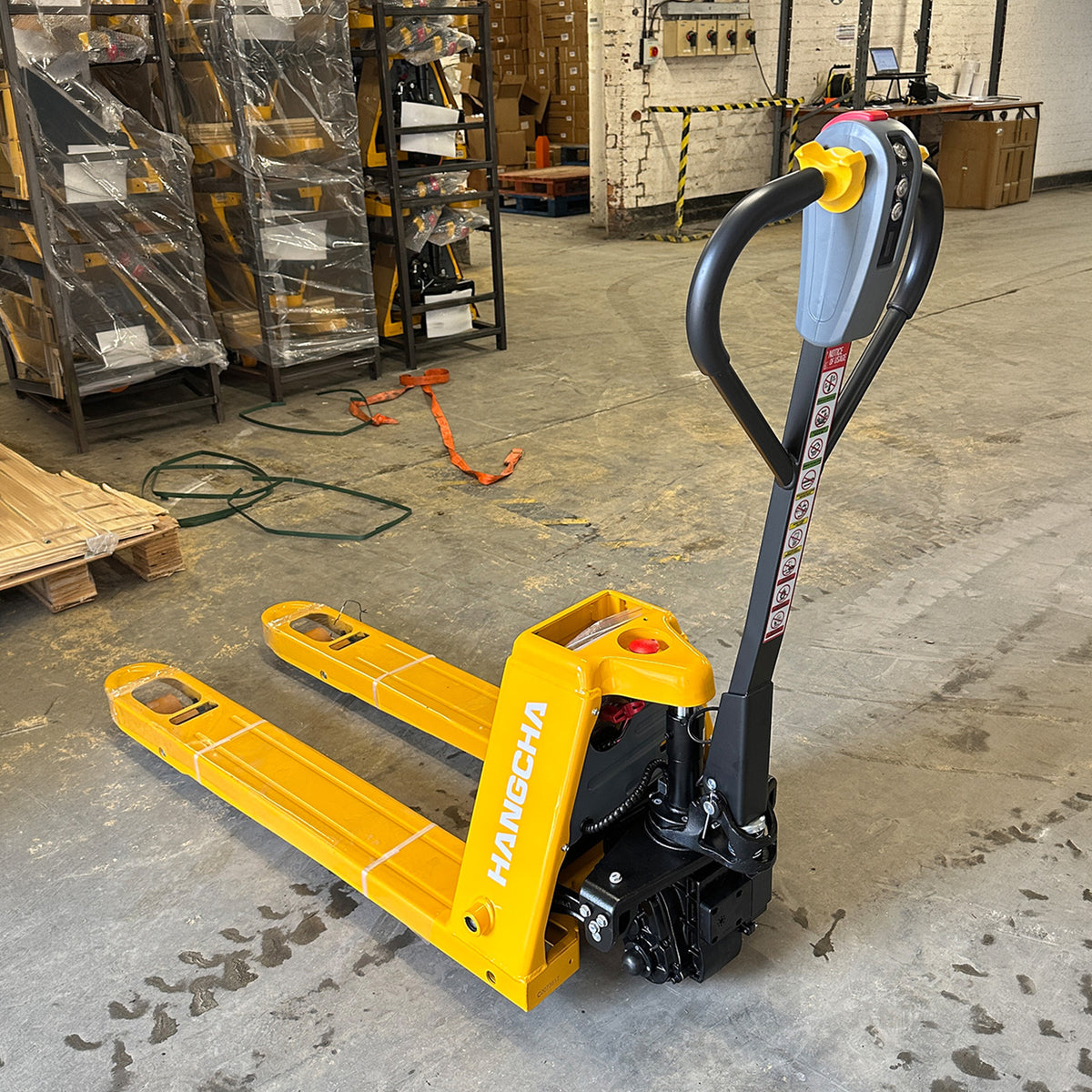

Designed for efficient material handling in demanding work environments, this fully electric pallet truck is available in 1500kg and 2000kg load capacity options. The 1500kg model features a 0.75kW brushless drive motor, while the 2000kg models use a 1.0kW brushless drive motor. All versions are powered by a removable 48V 10Ah lithium battery.

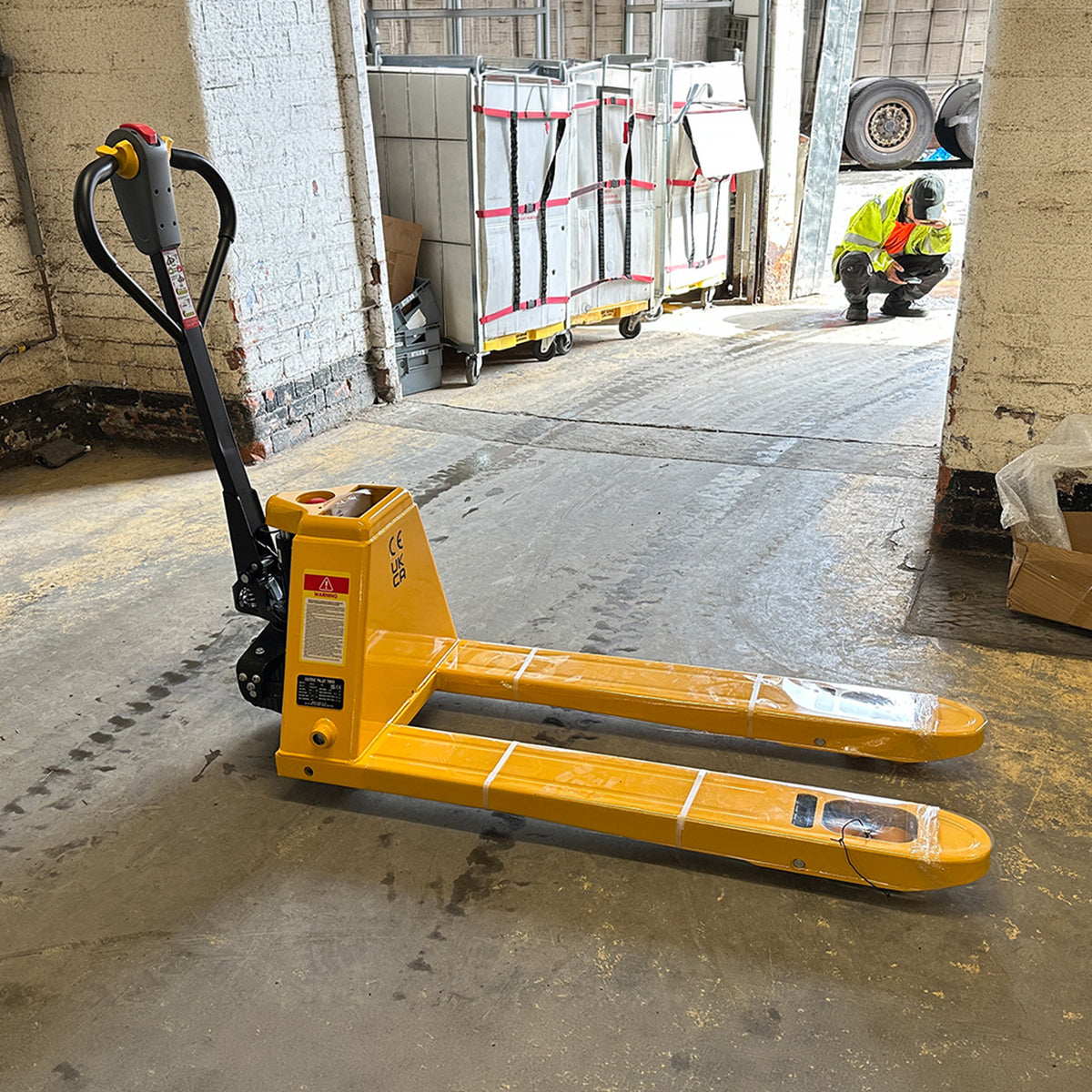

The truck offers forward and reverse movement together with powered lifting and lowering. Three driving modesโcreep speed, upright driving and engineering modeโprovide flexibility for different working conditions. A built-in horn and emergency reverse button are also included. Its compact design is suitable for material handling in small workshops and tight spaces, as well as use with trucks, box vans and tail lifts.
Features
-
[1500kg or 2000kg Capacity]: Choose from three configurations with different rated capacities and fork dimensions to suit your material handling requirements.
-

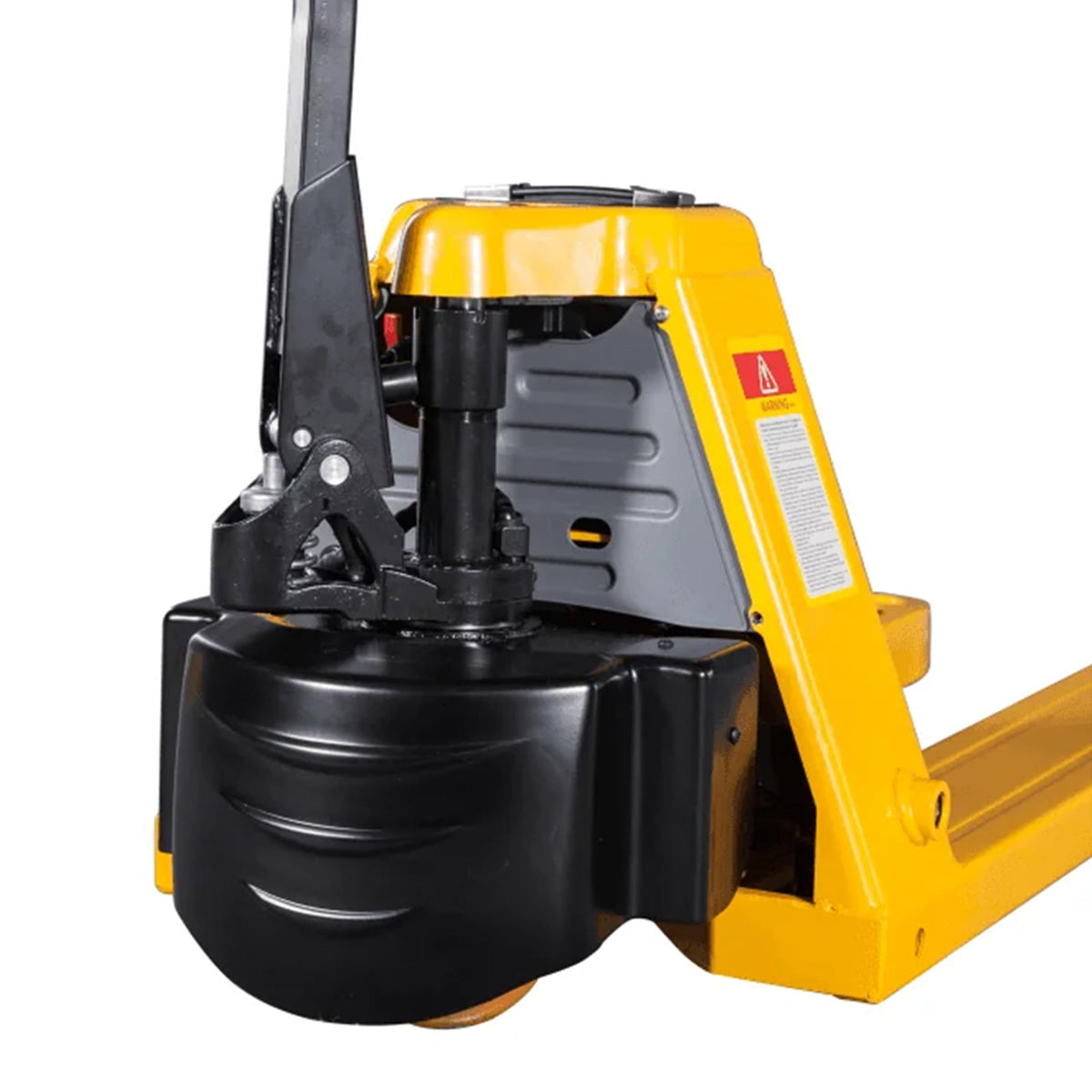

[Brushless Electric Drive]: Equipped with a 0.75kW brushless drive motor on the 1500kg model or a 1.0kW brushless drive motor on the 2000kg models, plus a 0.8kW lifting motor.
-
[Removable Lithium Battery]: 48V 10Ah lithium battery fully charges in 2 hours and can be swapped out in approximately 6 seconds.
-
[Three Driving Modes]: Includes creep speed, upright driving and engineering mode, with forward/reverse movement and powered lifting/lowering controls.
-

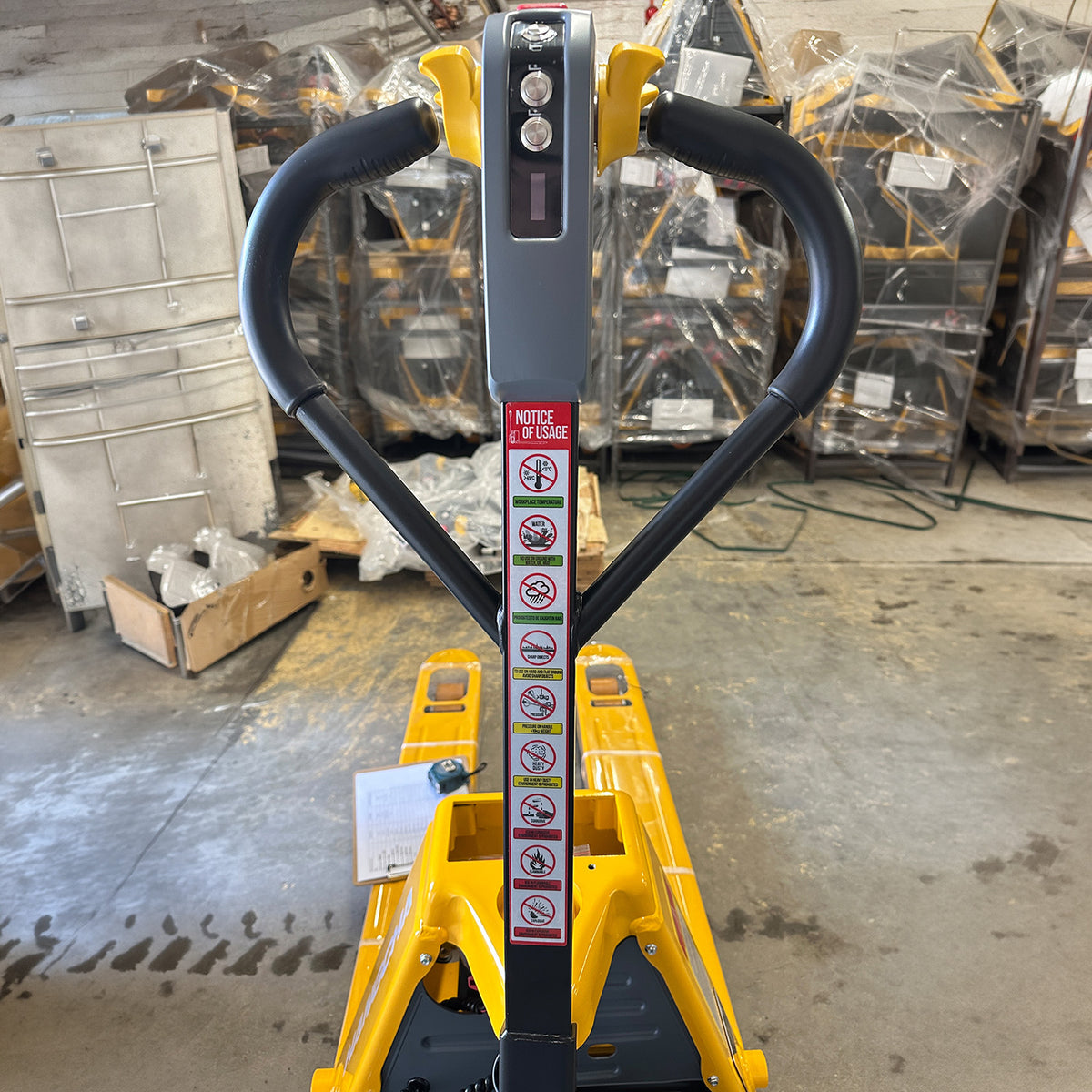

[Practical Controls & Display]: Ergonomic handle, LCD display with battery indicator, hour meter, error code display and charging alert, plus a horn and emergency reverse button. Drive wheels can be replaced in approximately 60 seconds.
Specifications
General Specifications
Product Type: Fully Electric Pallet Truck
Colour: Black + Yellow
Wheel Material: PU
Load Centre Distance: 600mm
Wheelbase: 1197/1267mm
Lowered Fork Height: 82ยฑ2mm
Maximum Fork Height: 197mm
Lift: 115mm
Maximum Travel Speed: Laden 4km/h / Unladen 4.5km/h
Gradeability: Laden 6% / Unladen 20%
Lifting Motor: DC 0.8kW
Lifting Speed (Laden/Unladen): 18/23mm/s
Lowering Speed (Laden/Unladen): 56/46mm/s
Battery Voltage: 48V
Battery Capacity/Type: 10Ah Lithium
Travel Brake: Regenerative
Brake: Electromagnetic

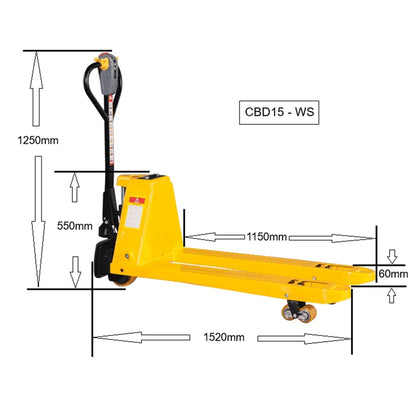

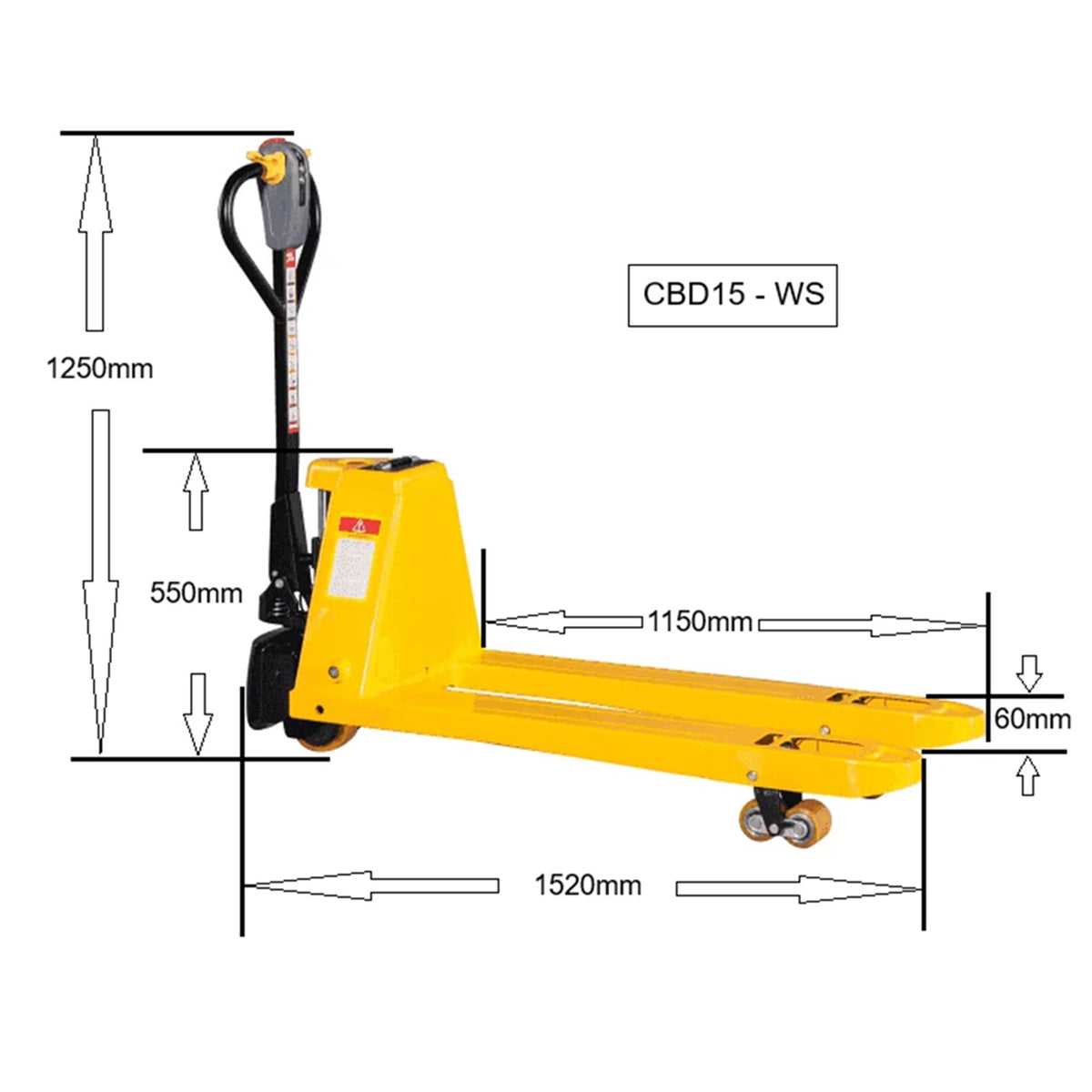

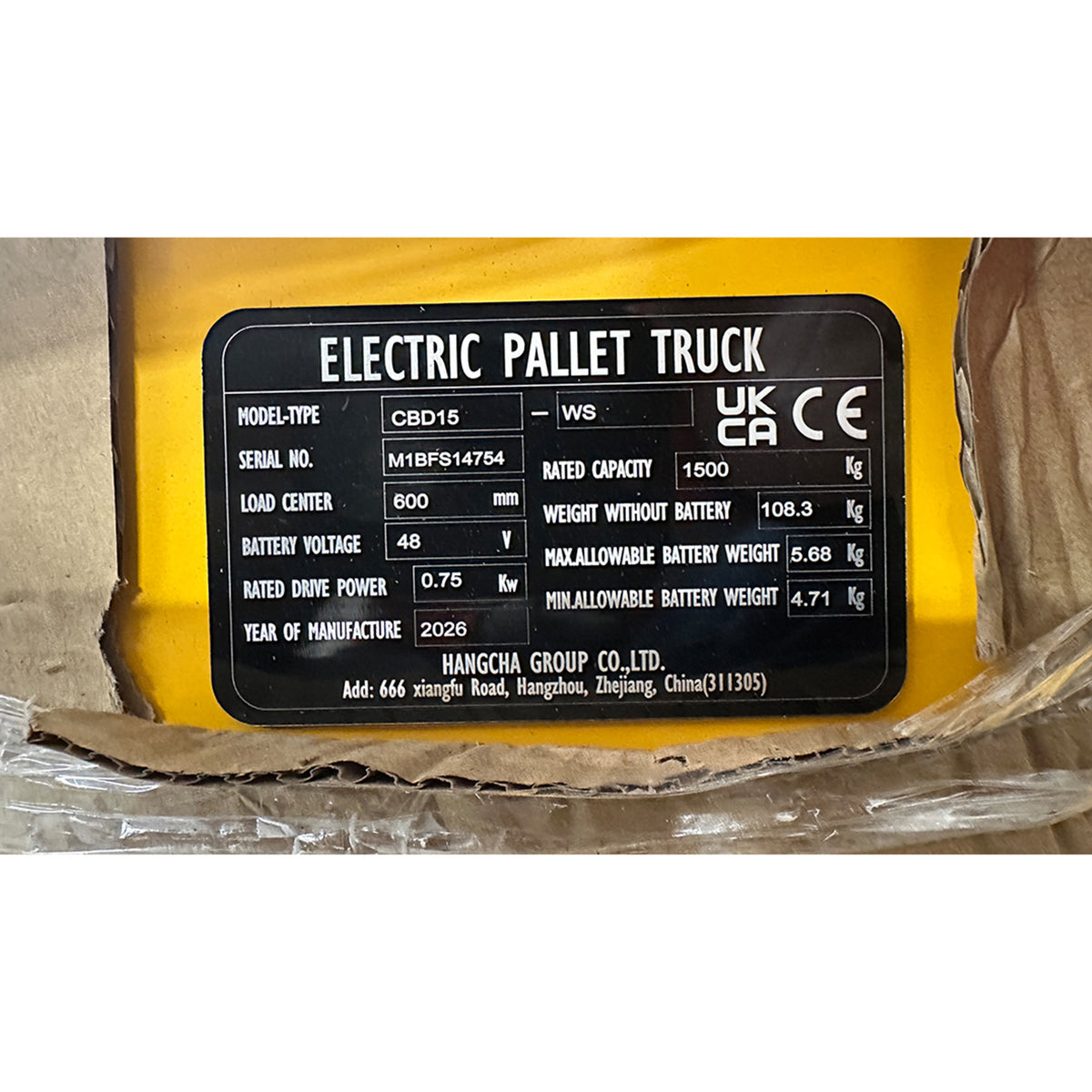

1500kg โ 115cm Fork
Rated Capacity: 1500kg
Overall Dimensions: 152 x 55 x 125cm
Single Fork Dimensions: 115 x 16cm
Fork Centre Gap: 23cm
Rear Body Width: 520/550/685mm
Minimum Turning Radius: 1353/1426mm
Drive Motor: DC 0.75kW Brushless

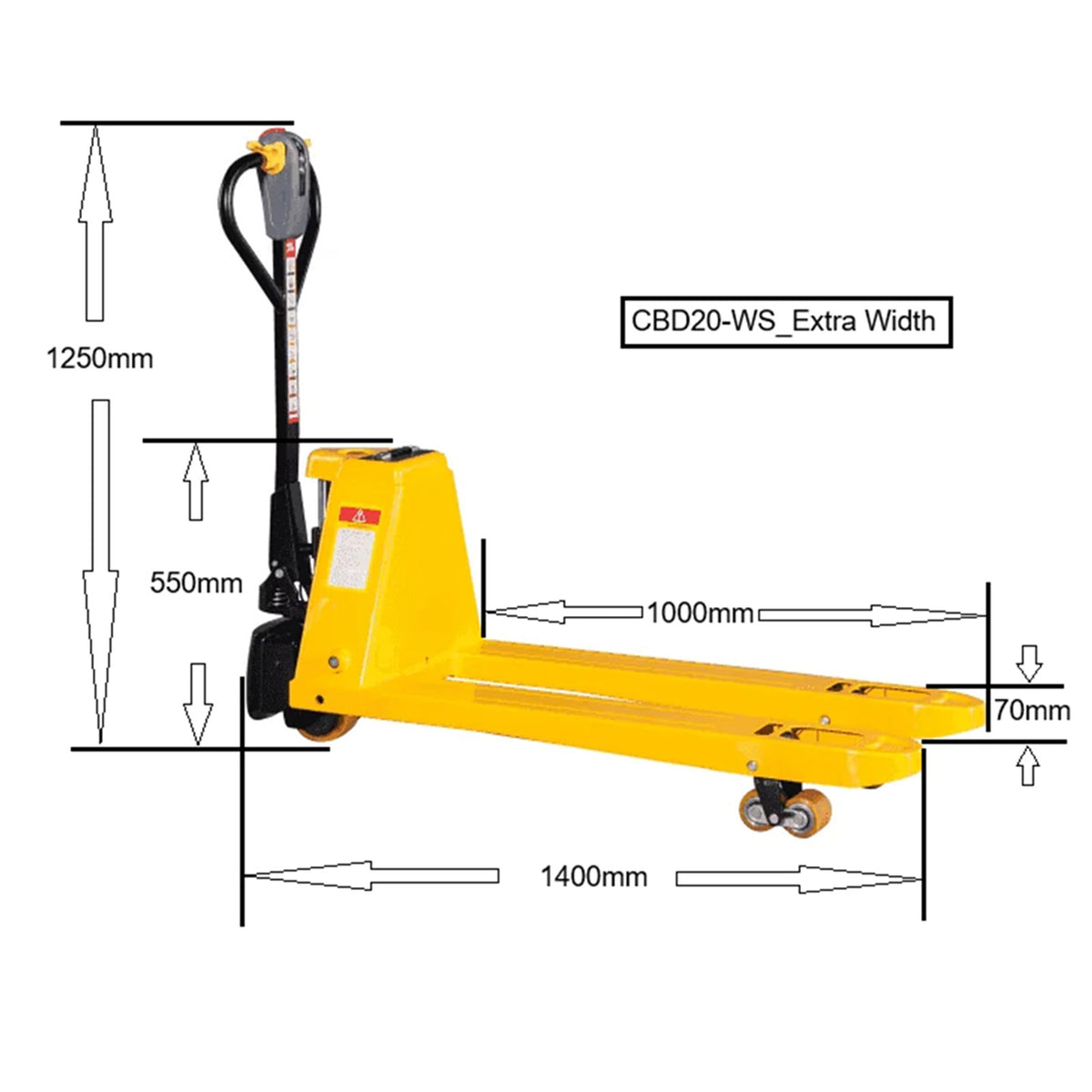

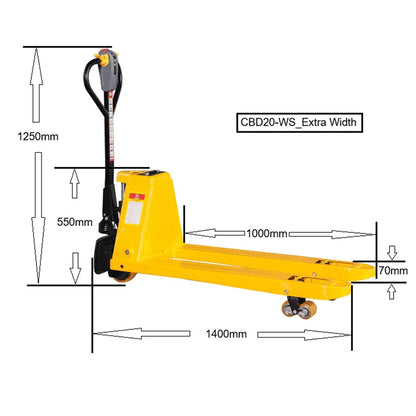

2000kg โ 100cm Fork
Rated Capacity: 2000kg
Overall Dimensions: 140 x 68.5 x 125cm
Single Fork Dimensions: 100 x 16cm
Fork Centre Gap: 37cm
Rear Body Width: 550/685mm
Minimum Turning Radius: 1353/1426mm
Drive Motor: DC 1.0kW Brushless

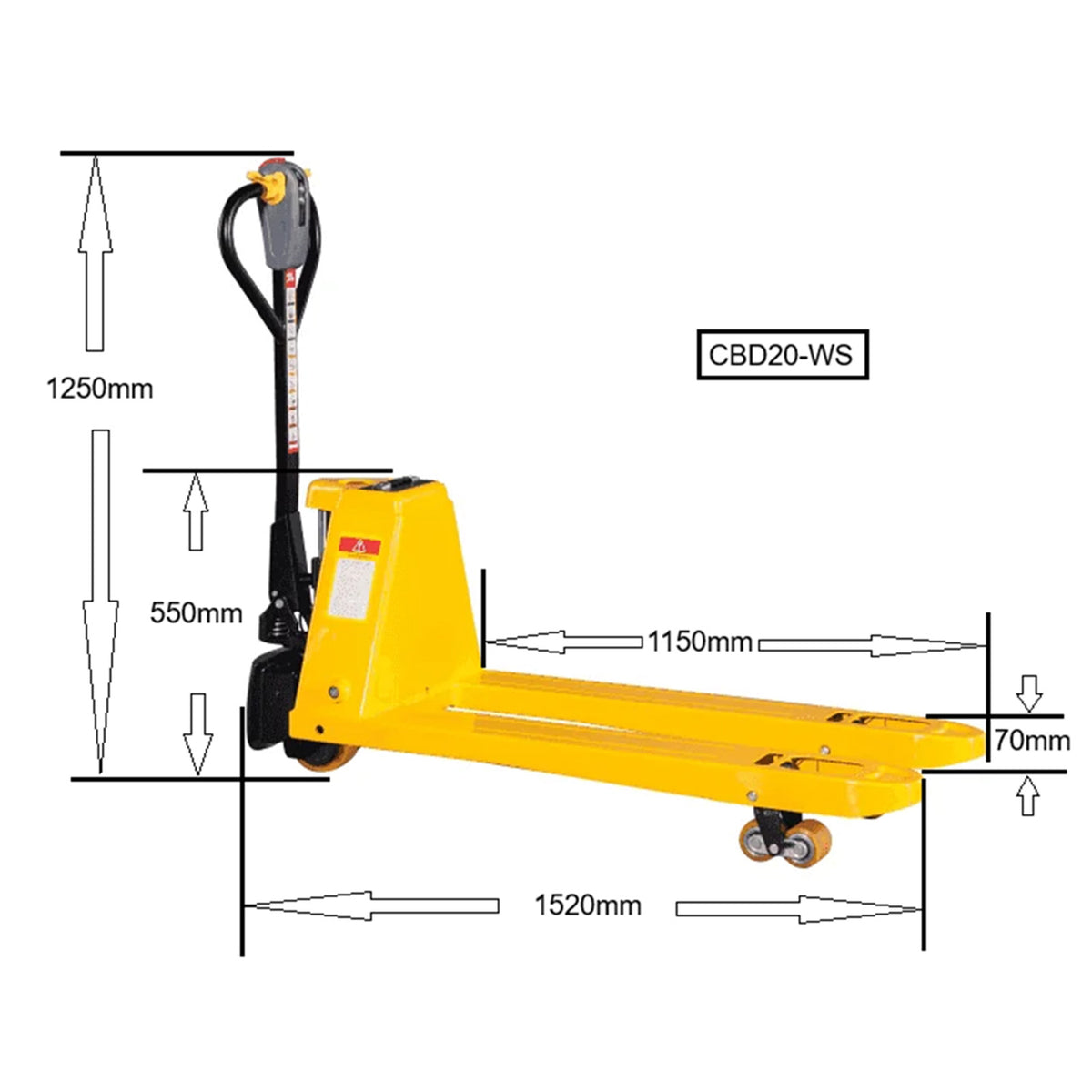

2000kg โ 115cm Fork
Rated Capacity: 2000kg
Overall Dimensions: 152 x 55 x 125cm
Single Fork Dimensions: 115 x 16cm
Fork Centre Gap: 23cm
Rear Body Width: 550/685mm
Minimum Turning Radius: 1353/1426mm
Drive Motor: DC 1.0kW Brushless
Package Content
1 x Electric Pallet Truck
Package Specifications
1500kg โ 115cm Fork
Package Dimensions (W x D x H): 152 x 55 x 125cm
Gross Weight: 113.3kg
2000kg โ 100cm Fork
Package Dimensions (W x D x H): 140 x 68.5 x 125cm
Gross Weight: 116.3kg
2000kg โ 115cm Fork
Package Dimensions (W x D x H): 152 x 55 x 125cm
Gross Weight: 116.3kg
Notes
- In upright drive mode, the vehicle will move when the handle is operated at any position. Please avoid misoperation.
- Brake release mode is for emergencies only and should not be used when the vehicle is operating normally.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings and lighting.
